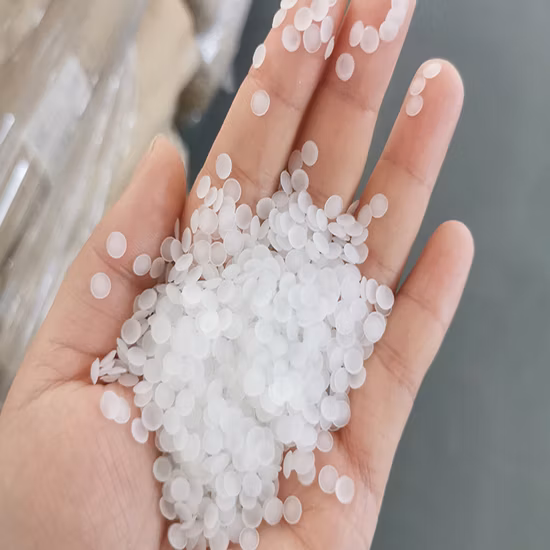

Perfluoroalkoxy Granules PFA Resin for Injection Extrusion Pumps and Valves Parts with RoHS

Basic Info

Model NO.	PFA
Market	India, Middle East, South Asia, America
Grade	Top Grade
Transport Package	Bag
Specification	25kg/bag(ctn)
Trademark	Haoru
Origin	China
HS Code	390469
Production Capacity	500tons/Months

Product Description

v

Product Description

PFA(fusible polytetrafluoroethylene) features excellent heat resistance, cold resistance, chemical stability, mechanical properties, insulation, self-lubrication, folding endurance, and cracking resistance. The company has developed three series of 22 products in 9 colors: injection molding, extrusion, and mould pressing.Product name: PFA resin
Brand: Haoru
Lichang No.: LC102
MFR: <=20
Color: can be customized
Package: 25kg/bag

Please contact me for more informations.

Detailed Photos

Product Parameters

TDS OF LC-PFA
Name of indicators	Unit	Value	Test Method
Relative density	g/cm 3	2.12-2.18	ASTM D792
Melt flow rate	g/10min	customizable	ASTM D1238
Melting point	ºC	270±5	GB/T 16582
Tensile strength	MPa	≥18	ASTM D638
Elongation at break	%	≥275	ASTM D638
Hardeness	Shore hardness	58	ASTM D2240
Yield strength	MPa	-	-
Dynamic friction coefficient	-	0.3	GB/T 10006
Maximal Temperature of Continuous Work	ºC	200	-
Heat distortion temperature	ºC(1.82MPa)	47	GB/T 19466
Thermal expansion Coefficient	(-10 -5 /ºC)	8-15	ASTM D696
Volume resistivity	Ω.cm	10 16-10 18	ASTM D257
Insulation breakdown Voltage	KV(3.2mm)	20	ASTM D149
Relative dielectric Constant	10 3Hz	2.1-2.3	ASTM D150
Dielectric loss angle tangent	10 6Hz	<0.0005	ASTM D150
Note: The above data is the representative value of our self -test, which is not applicable to the only basis for formulating specifications or as designed.

Our product series

1. Polytetrafluoroetylene(PTFE): two series of dispersion resin and suspension resin.2. Fluorinated ethylene propylene(FEP): insulation series, sheath series, transparentseries and high strength series.3. Polyfluoroalkoxy (PFA) : injection molding, extrusion, molding three series. 4. Polyvinylidene fluoride (PVDF): There are three series of injection molding, extrusion and molding. 5. Ethylene tetra fluoro ethylene(ETFE): three series of injection molding, extrusionand molding. 6. Polyether ether ketone (PEEK): four series of multifunctional composite, carbonfiber, pure resin, and glass fiber.7. Color masterbatch: fluororesin master batches in 10 common colors of black, white, blue, brown, red, yellow, green, gray, orange and purple are provided. We can also customize color master batches for customers to meet market and customer needs.

Our Main Products:

Company Profile

Hebei Haoru Import and Export Trading is located in Xingtai City, Hebei Province. This company is a large modern company. The main business scope is the export of plastic particles and office supplies. In recent years, the company adhering to the concept of customer development, adhere to development, accelerate industrial transformation and upgrading, vigorously implement the technology innovation strategy, put forward a series of industry-leading technology innovation. After years of efforts and development, it has a certain scale and strength. Now has a technical service team, with excellent quality, professional service, safe technical services to provide users with higher strength, better products and services. Thanks to the high quality of our products and reasonable export prices, this will lay the foundation for our strong technical capabilities and market presence in the Americas, Africa and the Middle East, mainly in continental Europe.

FAQ

1. Are youtrading company or Manufacturer ?We are factory.2.About SampleWe provide samples, but you need to pay the sample fee and freight.3. About MaterialWe can customize the material according to customers' requirement.4. About QualityAll the products must be tested strictly according to the testing procedure before shipment.5. About Delivery PeriodNormally delivered in 7 working days after the confirmation of order& payment. And it varies according to the material andquantity.6. About Payment termIt's flexible, T/T, L/C at sight,100% in advance,30% in advance, the balance by copy B/L
